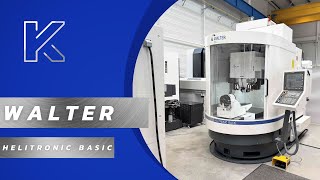

Walter Helitronic Basic sharpening machine
SAINT-GENIX-LES-VILLAGES
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+33 4 86 11...
Show
+33 4 86 11 77 77
France
France, Saint-Genix-les-Villages
France, Saint-Genix-les-Villages
Switzerland, Brugg
Netherlands, Hardinxveld-Giessendam
Poland, Belchatów
Switzerland, Brugg
Romania, Location:cluj-Napoca
Netherlands, Hardinxveld-Giessendam
Turkey, Konya
Belgium, Deinze
Belgium, Deinze
Netherlands, Hardinxveld-Giessendam
Italy, Ceggia
Austria, Vienna
Netherlands, Drachten
TECHNICAL CHARACTERISTICS :
Year of manufacturing : 2008
CNC control : FANUC 310i - MODEL A5
Software installed: Tool Studio Version 1.70.0.136
Number of axes: 5
Stroke X axis: 470 [mm]
Stroke Y axis: 330 [mm]
Stroke Z axis: 640 [mm]
Traversing feeds X, Y and Z axes: 15000 [mm/min]
A axis: 360 [°]
C axis: +/- 200 [°]
Max. workpiece lenght : complete processing: 255 [mm]
Max. workpiece lenght : peripheral grinding: 350 [mm]
Max. workpiece lenght : end face grinding: 280 [mm]
Max. grinding diameter: 320 [mm]
Max. grinding diameter with automated work table: 290 [mm]
Grinding spindle attachment: NCT
Grinding spindle diameter: 70 [mm]
Grinding wheel speed: 10500 [rpm]
Grinding spindle motor power: 7 [kW]
Max. diameter grinding wheel: 150 [mm]
Workpiece spindle nose: ISO 50
Max. part weight in part holder headstock: 20 [Kg]
Working hours: 10752 [h]
Coolant pump pressure: 7 [bars]
Collant pump flow rate: 80 [l/min]
Lubrication tank capacity: 350 [l]
Supply voltage: 400 [V]
Number of running hours: 10755 [h]
Weight: 4500 [Kg]
EQUIPMENT INCLUDED:
x1 Software TOOL STUDIO 1.7
x1 ECO LOADER automatic tool loader
x1 tool palett (20 positions)
x1 automatic tool clamping unit
x1 RENISHAW tool probe
x1 calibration ball option : automatic calibration of X, Y and Z axes
x1 DSL AIR TECHNOLOGY AES-SIGMA 20 type oil mist extractor
x1 lubrication tank
x1 paper band filtration unit
x1 GRUNDFOS coolant pump
x1 fire-fighting system (to be inspected by the purchaser by a qualified body)
x2 wheel flanges + spacers
x1 machine parameter backup
x3 technical manuals (paper format)
x1 technical documentation (CD-ROM format)
ADDITIONAL INFORMATION :
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
CARACTÉRISTIQUES TECHNIQUES :
Année : 2008
Type de CN : FANUC 310i - MODEL A5
Version software installée : Tool Studio Version 1.70.0.136
Nombre d’axes : 5
Course axe X : 470 [mm]
Course axe Y : 330 [mm]
Course axe Z : 640 [mm]
Vitesse déplacement rapide X, Y et Z : 15000 [mm/min]
Axe A : 360 [°]
Axe C : +/- 200 [°]
Longueur maxi. pièce : process complet d'affûtage : 255 [mm]
Longueur maxi. pièce : rectification cylindrique : 350 [mm]
Longueur maxi. pièce : rectification face : 280 [mm]
Diamètre maxi. d'affûtage : 320 [mm]
Diamètre maxi. d'affûtage : avec table 290 [mm]
Attachement broche porte-meule : NCT
Diamètre de broche porte-meule : 70 [mm]
Vitesse broche porte-meule : 10500 [tr/min]
Puissance broche porte-meule : 7 [kW]
Diamètre maxi. meule : 150 [mm]
Nez de broche porte-pièce : ISO 50
Poids maxi. admissible poupée porte-pièce : 20 [Kg]
Temps de travail : 10752 [h]
Pression pompe d'arrosage : 7 [bars]
Débit pompe d'arrosage : 80 [l/min]
Capacité bac d'arrosage : 350 [l]
Tension d'alimentation : 400 [V]
Nombre d'heures en fonctionnement: 10755 [h]
Poids : 4500 [Kg]
ÉQUIPEMENTS INCLUS:
x1 Soft TOOL STUDIO 1.7
x1 robot de chargement d'outils ECO LOADER
x1 palette de chargement 20 postes
x1 clampage automatique d'outil
x1 palpeur pièce RENISHAW
x1 boule de calibration : calibration automatique des axes X, Y et Z.
x1 aspiration de brouillard DSL AIR TECHNOLOGY type AES-SIGMA 20
x1 bac de lubrification + filtration papier
x1 pompe d'arrosage GRUNDFOS
x1 dispositif anti-incendie (à faire contrôler par l'acheteur par un organisme qualifié)
x2 tasseaux porte-meule + entretoises
x1 sauvegarde paramètres machine
x3 manuels techniques (format papier)
x1 documentation technique (format CD-ROM)
Machine visible sous tension pour essais en nos locaux, sur RDV.
Prix HT sur demande, chargement sur camion inclus.
Possibilité d’expédition dans toute la France ainsi qu’à l'international.
Plus de photos et détails sur demande.
Descriptif technique à titre indicatif, sans engagement de notre part.
Machine pour affuter les outils , fraise , taraud et foret.
Machine similaire aux marques Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer à voir également rectifieuse cylindrique ou plane , tour , centre d'usinage et fraiseuse
